The Site 14 Flagler Ave Reef is the closest Volusia County reef to Ponce Inlet; it is a mere 2.2 nm from the Bell Buoy at a bearing of 165°. It is about a mile offshore, just east of Flager Ave. in New Symrna Beach, and depths are 35-45 ft. Unlike the majority of the offshore reefs which are shaped like a square, the inshore reefs are more irregularly shaped.

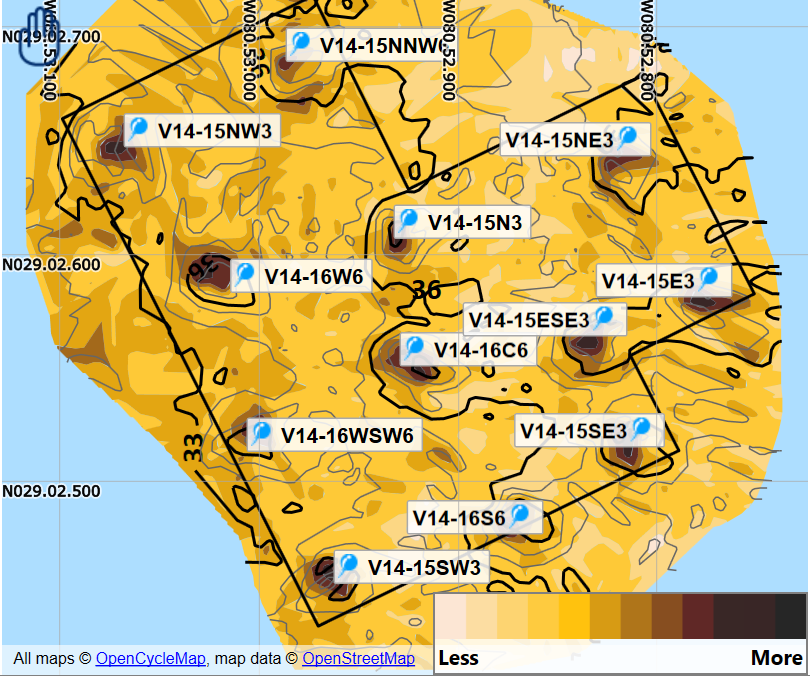

Site 14 Bottom Hardness and Contour lines
2015 - Site 14 NW Deposit (V14-15NW3)
DD MM.MMM: 29°02.649', -080°53.066'
DD.DDDDDD: 29.044150°, -080.884433°
On July 15 2015, a barge load of 450 tons of clean concrete culverts and concrete structures were placed in the northwestern part of this inshore site. The deposit is approximately 10 feet high and 80 feet long in a narrow line. Site depth is 37 ft.
2015 - Site 14 SW Deposit (V14-15SW3)
DD MM.MMM: 29°02.457', -080°52.960'
DD.DDDDDD: 29.040950°, -080.882667°
On July 19, 2015, a barge load of 450 tons of clean concrete culverts and concrete structures were placed in the southwestern part of the site. The deposit is approximately 10 feet high and 100 feet long in a tight narrow line. Site depth is 37 ft.
2015 - Site 14 SE Deposit (V14-15SE3)
DD MM.MMM: 29°02.517', -080°52.813'
DD.DDDDDD: 29.041950°, -080.880217°
On July 21, 2015, a barge load of 450 tons of clean concrete culverts and concrete structures were placed in the southeastern part of the site. The deposit is 9 to 10 feet high and 90 feet long in a tight narrow line. Site depth is 38 ft.
2015 - Site 14 SE Inside Deposit (V14-15ESE3)
DD MM.MMM: 29°02.566', -080°52.832'
DD.DDDDDD: 29.042767°, -080.880533°
On July 23, 2015, a barge load of 325 tons of clean concrete culverts, concrete structures jersey barriers and utility poles were placed in the inside of the southeastern part of the site. The deposit is 10 feet high and 90 feet long in a tight narrow line. Site depth is 38 ft (at low tide).
2015 - Site 14 ESE Deposit (V14-15E3)
DD MM.MMM: 29°02.583', -080°52.779'
DD.DDDDDD: 29.043048°, -080.879652°
On July 27, 2015, a barge load of 350 tons of clean concrete culverts, concrete structures and jersey barriers were placed in the east-southeastern part of the site. The deposit is 9 feet high and 100 feet long in a tight narrow line. Site depth is 40 ft (at low tide).
2015 - Site 14 ENE Inside Deposit (V14-15NE3)
DD MM.MMM: 29°02.645', -080°52.820'
DD.DDDDDD: 29.044082°, -080.880335°
On July 29, 2015, a barge load of 325 tons of clean concrete culverts, concrete structures and jersey barriers were placed in the east-northeastern part of the site. The deposit is 9 feet high and 90 feet long in a tight narrow line. Site depth is 40 ft. In addition, four jersey barriers with rebar loops for the later addition of buoys and moorings were also deposited.
2015 - Site 14 NE Inside Deposit (V14-15N3)
DD MM.MMM: 29°02.609', -080°52.930'
DD.DDDDDD: 29.043483°, -080.882167°
On July 30, 2015, a barge load of 325 tons of clean concrete culverts, concrete structures, jersey barriers and utility poles were placed in the northeastern inside part of the site. The deposit is 8-9 feet high and 90 feet long in a tight narrow line. Site depth is 40 ft.
2015 - Site 14 NNE Deposit (V14-15NNW6)
DD MM.MMM: 29°02.687', -080°52.984'
DD.DDDDDD: 29.044783°, -080.883067°
On July 31, 2015, a barge load of 475-500 tons of clean concrete culverts, concrete structures, jersey barriers and utility poles were placed in the north-northeastern part of the site. The deposit is 8-9 feet high and 90 feet long in a tight narrow line. Site depth is 39 ft.
2016 - Site 14 South Deposit (V14-16S6)
DD MM.MMM: 29°02.479' -080°52.874'
DD.DDDDDD: 29.041317°, -080.881233°
On September 11, 2016, 425 tons of mixed structures and concrete barriers were deployed in the southern part of the site. The material was deployed from each quadrant of the barge to create four separate piles approx. 50-75 ft. apart. The piles are 8-10 ft. high.
2016 - Site 14 Center Deposit (V14-16C6)
DD MM.MMM: 29°02.553', -080°52.927'
DD.DDDDDD: 29.042550°, -080.882117°
On September 19, 2016, a barge load of 400 tons of clean concrete jersey barriers and clean concrete mixed structures were placed in the center of the site. The deposit is in a quadrant of four separate piles, 40 to 60 feet apart, approximately 6 to 9 feet high. Site depth is approximately 40 ft.
2016 - Site 14 SSW Deposit (V14-16WSW6)
DD MM.MMM: 29°02.515', -080°53.004'
DD.DDDDDD: 29.041917°, -080.883400°
On September 20, 2016, a barge load of 435 tons of clean concrete jersey barriers and clean concrete mixed structures was placed in the south-southwest area of the site. The deposit is in a quadrant of four separate piles, 40 to 60 feet apart, approximately 6-8 feet high.
2016 - Site 14 NNW Deposit (V14-16W6)
DD MM.MMM: 29°02.585', -080°53.012'
DD.DDDDDD: 29.043083°, -080.883533°
On September 21, 2016, a barge load of 415 tons of clean concrete jersey barriers and clean concrete mixed structures was placed in the north-northwest area of the site. The deposit is in a quadrant of four separate piles, 40 to 60 feet apart, approximately 6 to 9 feet high.
